C-Mount High Resolution Telecentric Lenses

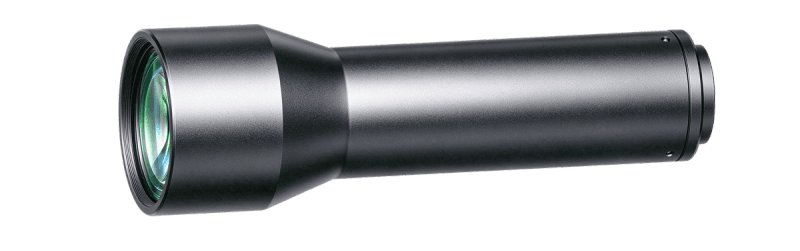

WWK075-185-111V3
WWK075-185-111V3
WWK075-185-111V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.75 |
|---|---|
| Working Distance(mm) | 185 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 8.1 |
| Telecentricity(°) | 0.2 |
| Distortion(%) | 0.2 |
| MTF30 (Image-side)(lp/mm) | 106 |
| Depth of Field(mm) | 1.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 147.1 |
| NA | 0.04692 |
|---|---|
| Filter Thread | M44x0.5 |
| Coaxial Light Support | No |
| Iris | No |
