VICO
C-Mount High Resolution Telecentric Lenses

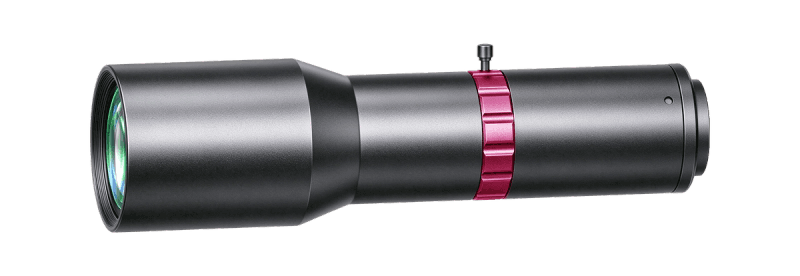

WWK075-115-111V3-G
WWK075-115-111V3-G
WWK075-115-111V3-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.75 |
|---|---|
| Working Distance(mm) | 115 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 6.6-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.15 |
| MTF30 (Image-side)(lp/mm) | 104-31 |
| Depth of Field(mm) | 0.9-4.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 153.4 |
| NA | 0.0567-0.01171 |
|---|---|
| Filter Thread | M41x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
