C-Mount High Resolution Telecentric Lenses

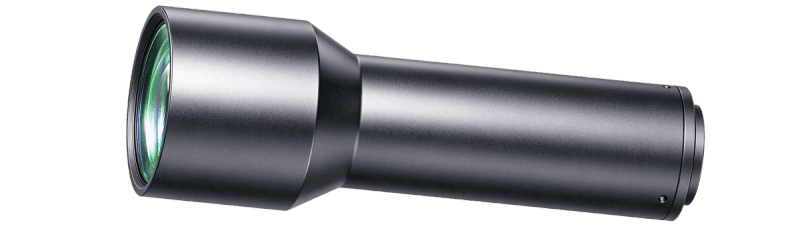

WWK07-190-230
WWK07-190-230
WWK07-190-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.7 |
|---|---|
| Working Distance(mm) | 190 |
| Max Sensor Size | 11(2/3") |
| F-Number | 8.1 |
| Telecentricity(°) | 0.2 |
| Distortion(%) | 0.2 |
| MTF30 (Image-side)(lp/mm) | 106 |
| Object Resolution(μm) | 7.7 |
| Depth of Field(mm) | 1.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 138.1 |
| Object Field of View(Φmm) | 15.7 |
|---|---|
| NA | 0.04363 |
| Filter Thread | M44x0.5 |
| Coaxial Light Support | No |
| Iris | No |
