C-Mount High Resolution Telecentric Lenses
WWK07-108C-110V2
WWK07-108C-110V2

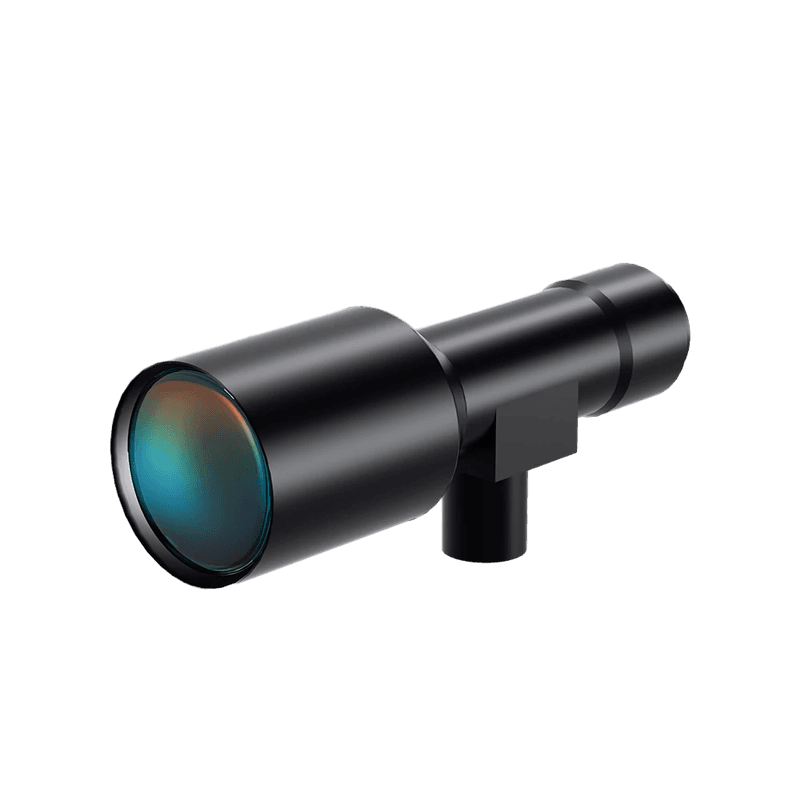

WWK07-108C-110V2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.7 |
|---|---|
| Working Distance(mm) | 108 |
| Max Sensor Size | 18.0(1") |
| F-Number | 7.0 |
| Telecentricity(°) | 0.15 |
| Distortion(%) | 0.06 |
| MTF30 (Image-side)(lp/mm) | 127.8 |
| Depth of Field(mm) | 1.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 141.3 |
| Object Field of View(Φmm) | 25.7 |
|---|---|
| NA | 0.0499 |
| Length of I/O(mm) | 258.9 |
| Coaxial Light Support | Yes |
| Iris | No |
