VICO

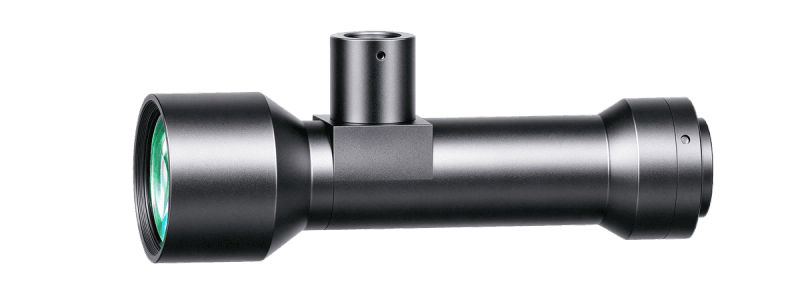

C-Mount High Resolution Telecentric Lenses
WWK07-105CP-111V3
WWK07-105CP-111V3
WWK07-105CP-111V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.7 |
|---|---|
| Working Distance(mm) | 105 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 7.0 |
| Telecentricity(°) | 0.15 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 122 |
| Depth of Field(mm) | 1.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 139.5 |
| Object Field of View(Φmm) | 26.3 |
|---|---|
| NA | 0.05 |
| Filter Thread | M41x0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
