C-Mount High Resolution Telecentric Lenses

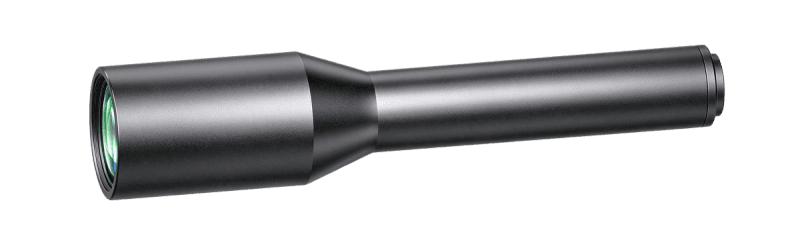

WWK069-192-110
WWK069-192-110
WWK069-192-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.69 |
|---|---|
| Working Distance(mm) | 192 |
| Max Sensor Size | 16.6(1") |
| F-Number | 9 |
| Telecentricity(°) | 0.01 |
| Distortion(%) | 0.01 |
| MTF30 (Image-side)(lp/mm) | 85 |
| Depth of Field(mm) | ±0.75@F9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 262.0 |
| Filter Thread | M50x0.5 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
