VICO
C-Mount High Resolution Telecentric Lenses
WWK063-150-111-G
WWK063-150-111-G

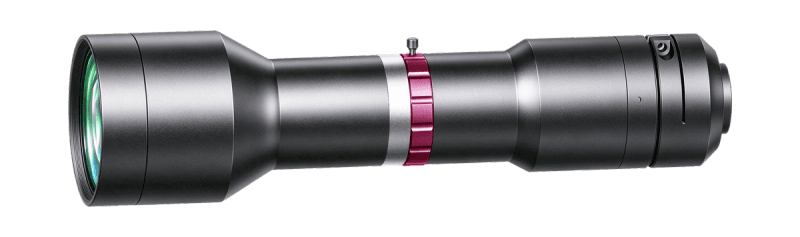

WWK063-150-111-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.63 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 18.4 |
| F-Number | 7-32 |
| Telecentricity(°) | 0.08 |
| Distortion(%) | 0.07 |
| MTF30 (Image-side)(lp/mm) | 139.8-31.8 |
| Depth of Field(mm) | 1.411-6.45 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 227.3 |
| Object Field of View(Φmm) | 29.2 |
|---|---|
| NA | 0.045-0.0098 |
| Filter Thread | M57x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
