C-Mount High Resolution Telecentric Lenses

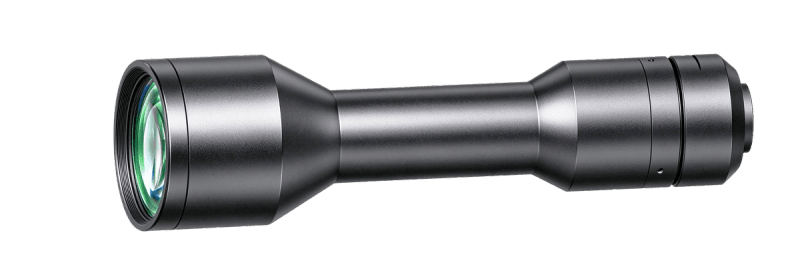

WWK063-150-111
WWK063-150-111
WWK063-150-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.63 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 7 |
| Telecentricity(°) | 0.08 |
| Distortion(%) | 0.07 |
| MTF30 (Image-side)(lp/mm) | 128 |
| Object Resolution(μm) | 7.46 |
| Depth of Field(mm) | 1.4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 227.4 |
| NA | 0.045 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
