VICO
C-Mount High Resolution Telecentric Lenses

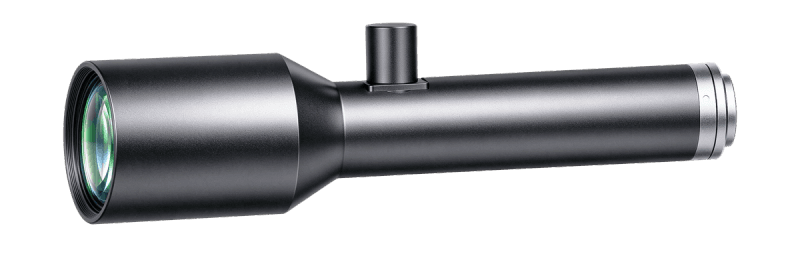

WWK06-208C-230
WWK06-208C-230
WWK06-208C-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.6 |
|---|---|
| Working Distance(mm) | 208±3 |
| Max Sensor Size | 11(2/3") |
| F-Number | 8 |
| Telecentricity(°) | <0.03 |
| Distortion(%) | <0.03 |
| MTF30 (Image-side)(lp/mm) | >120 |
| Depth of Field(mm) | ±0.9@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 234.2 |
| Coaxial Light Support | Yes |
|---|---|
| Iris | No |
