C-Mount High Resolution Telecentric Lenses
WWK06-110C-111V3

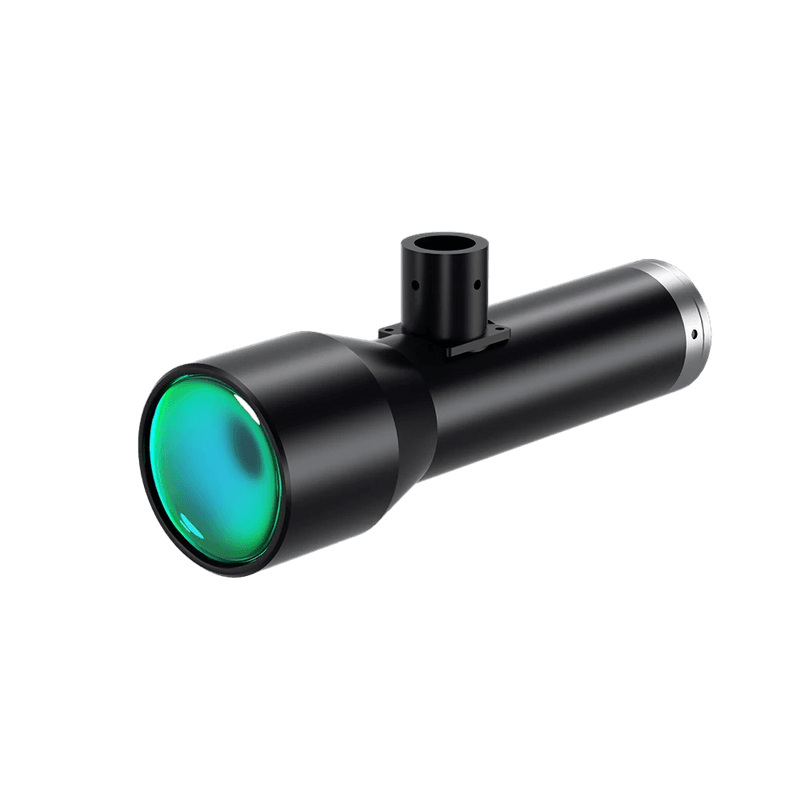

WWK06-110C-111V3 Object-Side Telecentric Lens
COOLENS WWK06-110C-111V3 object-side telecentric lens — low distortion and optional coaxial lighting for wafer, glass and display AOI.
Key Specifications
Optical Specifications
| Magnification | 0.6 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 7 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.10 |
| MTF30 (Image-side)(lp/mm) | 134 |
| Depth of Field(mm) | ±0.8@F7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 133 |
| NA | 0.04266 |
|---|---|
| Filter Thread | M50 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
