C-Mount High Resolution Telecentric Lenses

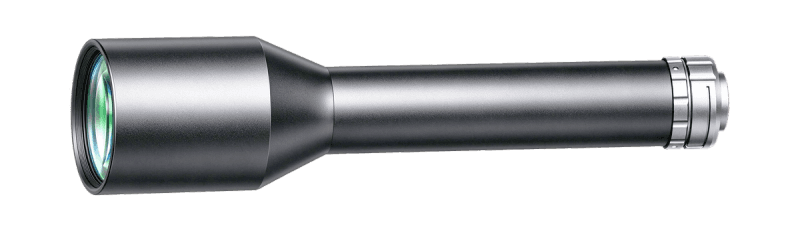

WWK05-350A-230-AL
WWK05-350A-230-AL
WWK05-350A-230-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 350 |
| Max Sensor Size | 11(2/3") |
| F-Number | 6.9 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 138 |
| Object Resolution(μm) | 9.3 |
| Depth of Field(mm) | ±1.1@F6.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 244.7 |
| NA | 0.03616 |
|---|---|
| Filter Thread | M53x0.5 |
| Coaxial Light Support | No |
| Iris | No |
