VICO
C-Mount High Resolution Telecentric Lenses
WWK05-220-111-G
WWK05-220-111-G

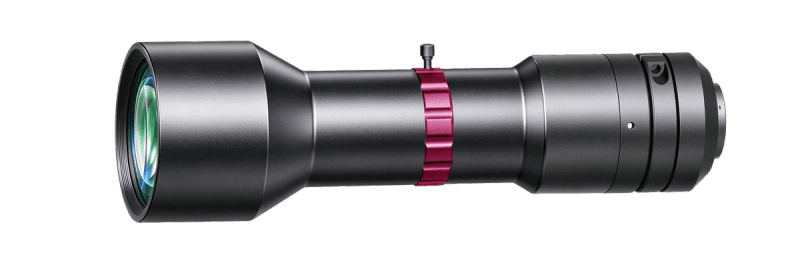

WWK05-220-111-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 220±3 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 7-32 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 140-31 |
| Depth of Field(mm) | 2.2-10.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 202.5 |
| NA | 0.03564-0.0078 |
|---|---|
| Filter Thread | M57x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
