VICO
C-Mount High Resolution Telecentric Lenses

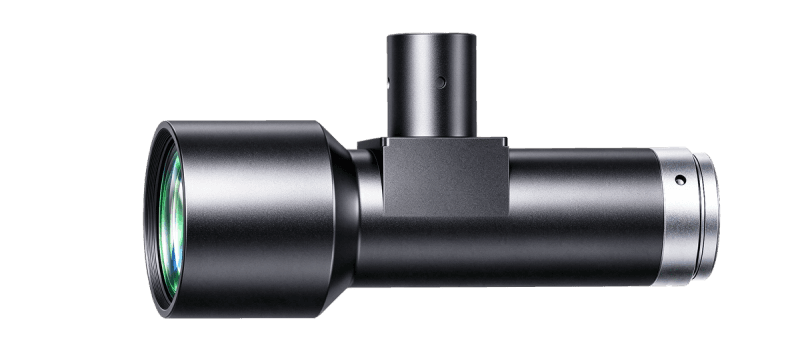

WWK05-152C-230V2
WWK05-152C-230V2
WWK05-152C-230V2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 152 |
| Max Sensor Size | 11(2/3") |
| F-Number | 8.1 |
| Telecentricity(°) | 0.12 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 101.4 |
| Object Resolution(μm) | 10.9 |
| Depth of Field(mm) | 2.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 107.5 |
| NA | 0.0308 |
|---|---|
| Coaxial Light Support | Yes |
| Iris | No |
