C-Mount High Resolution Telecentric Lenses
WWK05-150-111V2-G
WWK05-150-111V2-G

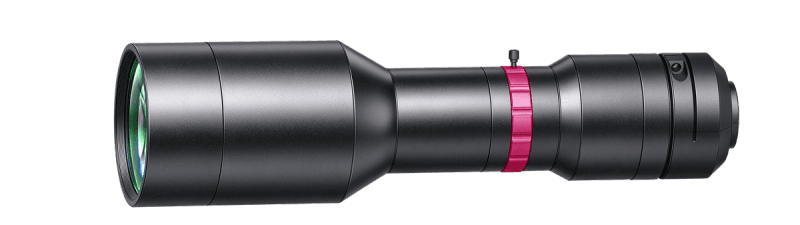

WWK05-150-111V2-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 7-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.09 |
| MTF30 (Image-side)(lp/mm) | 137.5-31.8 |
| Depth of Field(mm) | 2.24-10.24 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 232.5 |
| Object Field of View(Φmm) | 36.8 |
|---|---|
| NA | 0.0357-0.0078 |
| Filter Thread | M57x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
