VICO

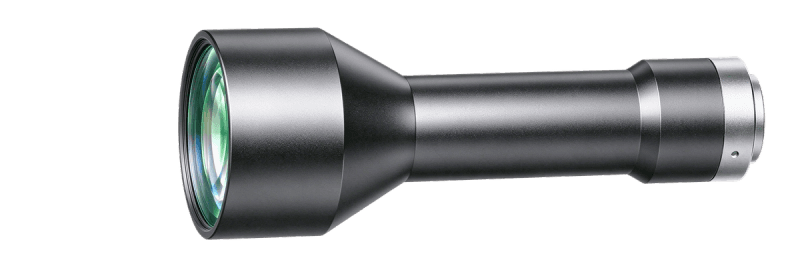

C-Mount High Resolution Telecentric Lenses
WWK05-150-110
WWK05-150-110
WWK05-150-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 16(1") |
| F-Number | 10 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 93 |
| Object Resolution(μm) | 13.3 |
| Depth of Field(mm) | 3.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 166.7 |
| NA | 0.036 |
|---|---|
| Filter Thread | M56 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
