VICO
C-Mount High Resolution Telecentric Lenses
WWK05-128-111V3
WWK05-128-111V3

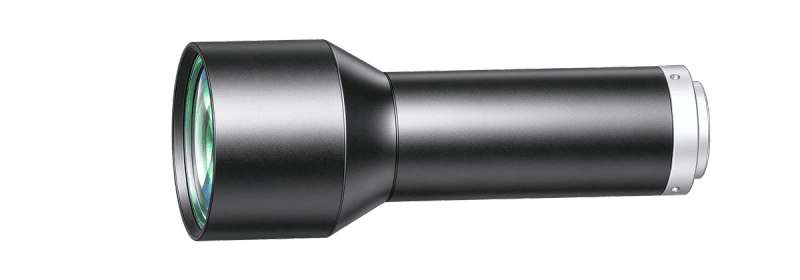

WWK05-128-111V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 128 |
| Max Sensor Size | 18.2(1.1") |
| F-Number | 8 |
| Telecentricity(°) | 0.16 |
| Distortion(%) | 0.06 |
| MTF30 (Image-side)(lp/mm) | 100 |
| Object Resolution(μm) | 10.7 |
| Depth of Field(mm) | ±1.3@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 131.2 |
| NA | 0.03122 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
