C-Mount High Resolution Telecentric Lenses

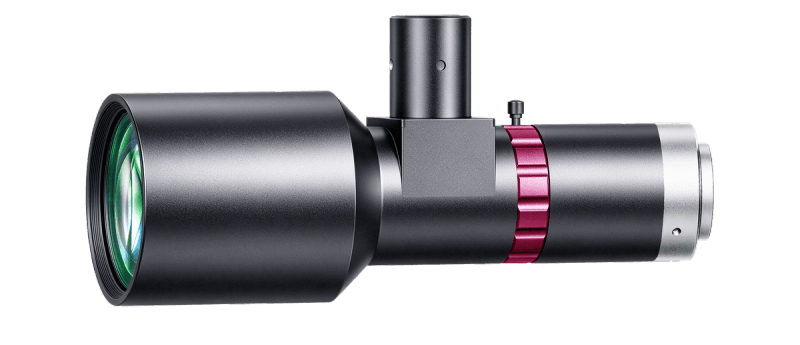

WWK05-110CP-111V3-G
WWK05-110CP-111V3-G
WWK05-110CP-111V3-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.2(1.1") |
| F-Number | 7-32 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 128.1-30.7 |
| Object Resolution(μm) | 10.05-45.91 |
| Depth of Field(mm) | 2.2-10.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 146.5 |
| NA | 0.0357-0.0078 |
|---|---|
| Filter Thread | M50 P0.5 |
| Coaxial Light Support | Yes |
| Iris | Yes |
