VICO
C-Mount High Resolution Telecentric Lenses

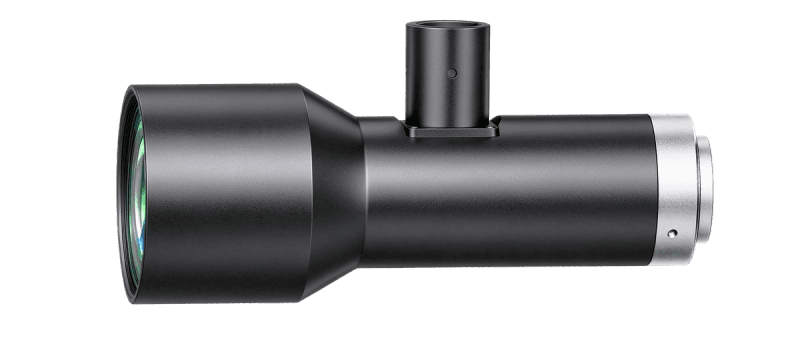

WWK05-110C-111V3
WWK05-110C-111V3
WWK05-110C-111V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.4(1.1 |
| F-Number | 7 |
| Telecentricity(°) | 0.08 |
| Distortion(%) | 0.10 |
| MTF30 (Image-side)(lp/mm) | 124 |
| Depth of Field(mm) | ±1.1@F7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 133.2 |
| NA | 0.03569 |
|---|---|
| Filter Thread | M50 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
