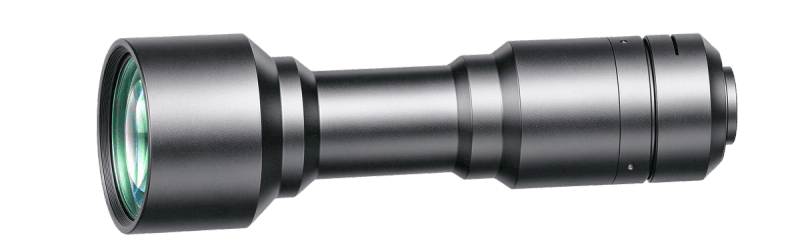

C-Mount High Resolution Telecentric Lenses
WWK046-230-111-AL
WWK046-230-111-AL
WWK046-230-111-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.46 |
|---|---|
| Working Distance(mm) | 230 |
| Max Sensor Size | 18(1.1") |
| F-Number | 7.5 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 128 |
| Depth of Field(mm) | 2.8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 203 |
| Object Field of View(Φmm) | 39 |
|---|---|
| NA | 0.03075 |
| Length of I/O(mm) | 450 |
| Filter Thread | M57x0.5 |
| Coaxial Light Support | No |
| Iris | No |
