VICO
C-Mount High Resolution Telecentric Lenses

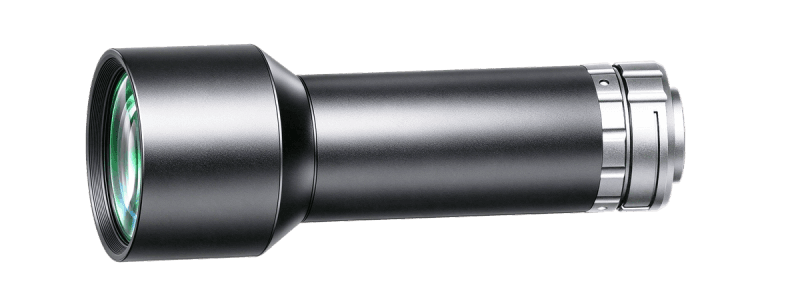

WWK046-120-110-AL
WWK046-120-110-AL
WWK046-120-110-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.46 |
|---|---|
| Working Distance(mm) | 120±2 |
| Max Sensor Size | 16.0(1") |
| F-Number | 7 |
| Telecentricity(°) | 0.4 |
| Distortion(%) | 0.2 |
| MTF30 (Image-side)(lp/mm) | 120 |
| Depth of Field(mm) | ±1.3@F7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 137.0 |
| NA | 0.03284 |
|---|---|
| Filter Thread | M50x0.5 |
| Coaxial Light Support | No |
| Iris | No |
