VICO
C-Mount High Resolution Telecentric Lenses

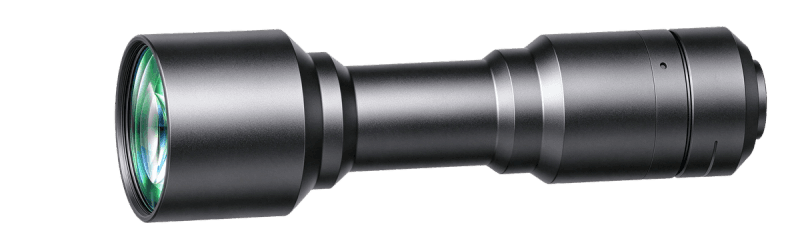

WWK045-235-111
WWK045-235-111
WWK045-235-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.45 |
|---|---|
| Working Distance(mm) | 235±3 |
| Max Sensor Size | 18(1.1") |
| F-Number | 8 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 123 |
| Depth of Field(mm) | 3.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 202.1 |
| NA | 0.02816 |
|---|---|
| Filter Thread | M57*0.5 |
| Coaxial Light Support | No |
| Iris | No |
