VICO
C-Mount High Resolution Telecentric Lenses
WWK04-400-111
WWK04-400-111

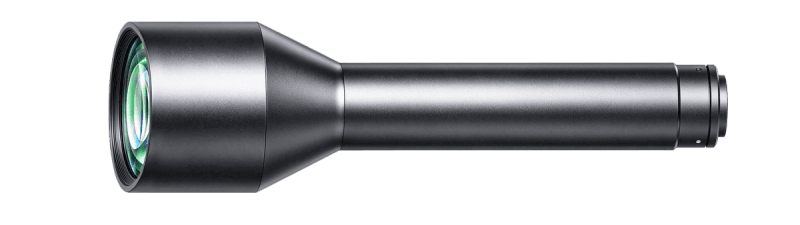

WWK04-400-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 400 |
| Max Sensor Size | 17.5(1.1") |
| F-Number | 11 |
| Telecentricity(°) | 0.12 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 81.4 |
| Object Resolution(μm) | 19.8 |
| Depth of Field(mm) | 5.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 242.5 |
| NA | 0.0181 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
