C-Mount High Resolution Telecentric Lenses

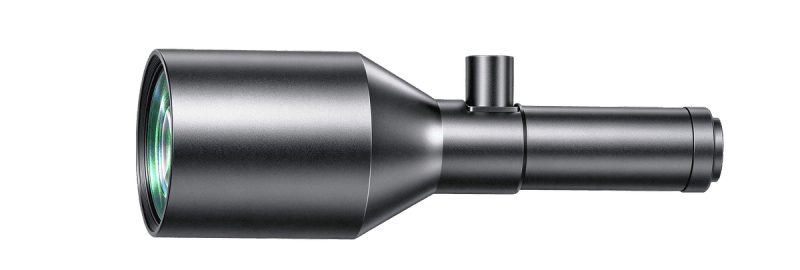

WWK04-200C-111
WWK04-200C-111
WWK04-200C-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 200 |
| Max Sensor Size | 18(1.1") |
| F-Number | 8 |
| Telecentricity(°) | 0.05 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 92 |
| Depth of Field(mm) | 4.5 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 228.2 |
| Object Field of View(Φmm) | 45 |
|---|---|
| NA | 0.02209 |
| Filter Thread | M70.0x0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
