C-Mount High Resolution Telecentric Lenses

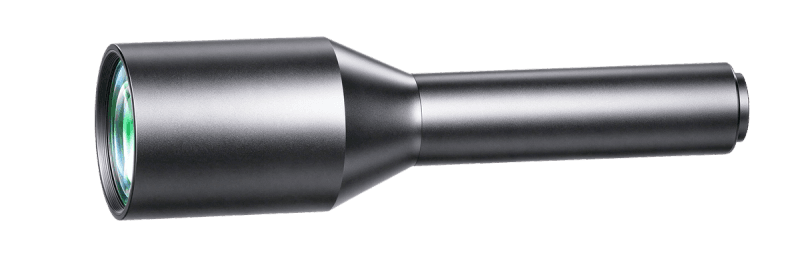

WWK04-196-110
WWK04-196-110
WWK04-196-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 196±3 |
| Max Sensor Size | 16.0(1") |
| F-Number | 8 |
| Telecentricity(°) | <0.5 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >115 |
| Depth of Field(mm) | ±2@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 232.5 |
| NA | 0.02524 |
|---|---|
| Filter Thread | M60x0.5 |
| Coaxial Light Support | No |
| Iris | No |
