C-Mount High Resolution Telecentric Lenses

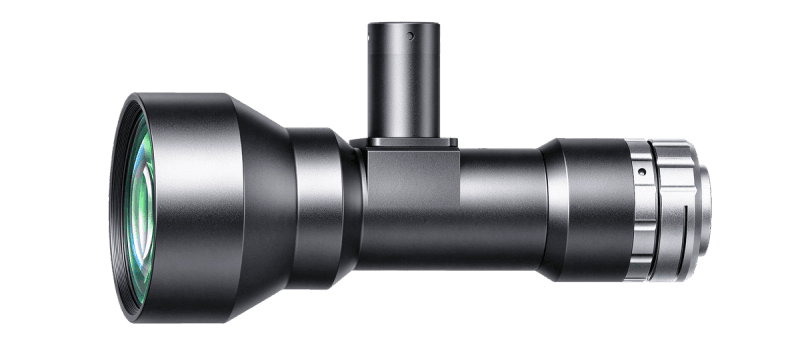

WWK04-150CP-110
WWK04-150CP-110
WWK04-150CP-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 150±2 |
| Max Sensor Size | 16(1") |
| F-Number | 9 |
| Telecentricity(°) | 0.08 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 105 |
| Object Resolution(μm) | 15.1 |
| Depth of Field(mm) | ±2.25@F9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 157.2 |
| NA | 0.0222 |
|---|---|
| Length of I/O(mm) | 319 |
| Working Wavelength(nm) | 400~660 |
| Filter Thread | M60 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
