C-Mount High Resolution Telecentric Lenses

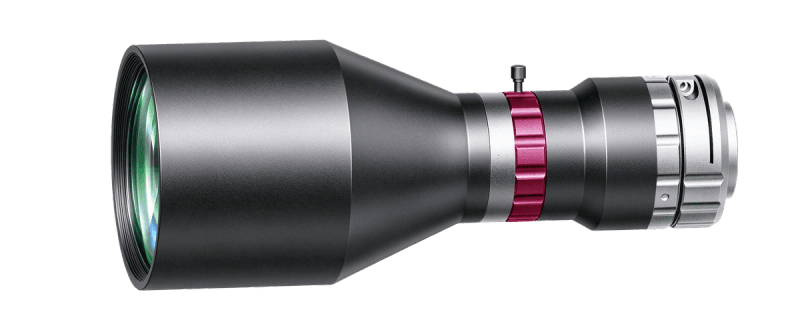

WWK04-150-110V2-G-AL
WWK04-150-110V2-G-AL
WWK04-150-110V2-G-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 150±2 |
| Max Sensor Size | 16.0(1") |
| F-Number | 9-32 |
| Telecentricity(°) | 0.2 |
| Distortion(%) | 0.02 |
| MTF30 (Image-side)(lp/mm) | 98-31.3 |
| Depth of Field(mm) | 4.5-16 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 151.9 |
| NA | 0.0222-0.0062 |
|---|---|
| Length of I/O(mm) | 319.4 |
| Filter Thread | M52 P0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
