C-Mount High Resolution Telecentric Lenses
WWK04-110C-230
WWK04-110C-230

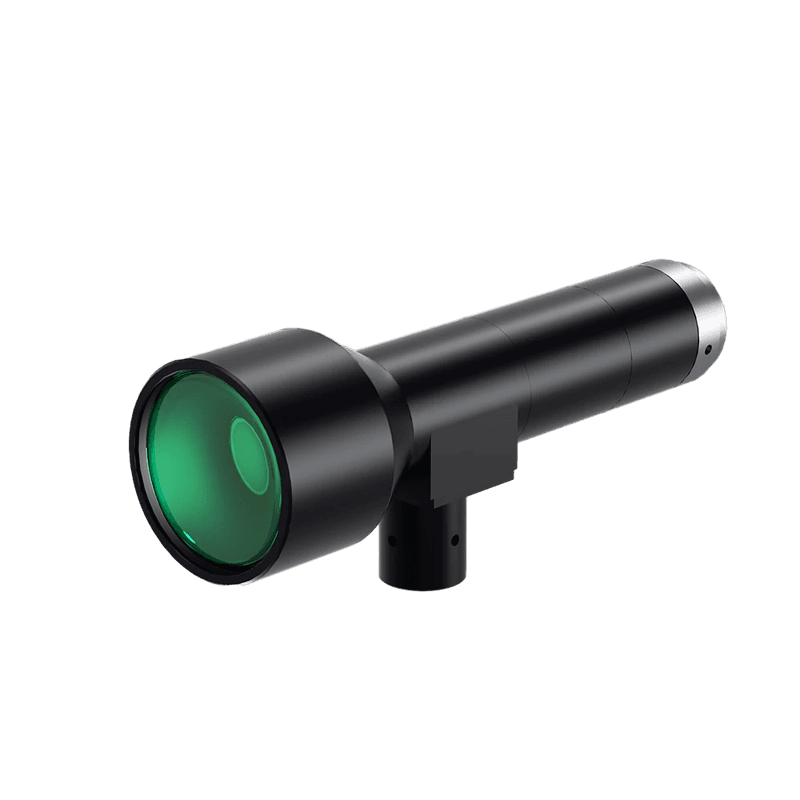

WWK04-110C-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 7.0 |
| Telecentricity(°) | <0.03 |
| Distortion(%) | <0.02 |
| MTF30 (Image-side)(lp/mm) | 140 |
| Depth of Field(mm) | ±1.8@F7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 140.2 |
| NA | 0.02852 |
|---|---|
| Filter Thread | M40 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
