VICO
C-Mount High Resolution Telecentric Lenses

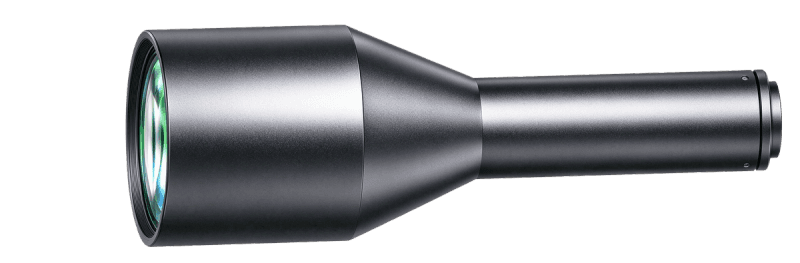

WWK0367-220-111V4
WWK0367-220-111V4
WWK0367-220-111V4 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.367 |
|---|---|
| Working Distance(mm) | 220 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 7 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 130 |
| Depth of Field(mm) | 4.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 213.2 |
| Object Field of View(Φmm) | 49 |
|---|---|
| NA | 0.02621 |
| Filter Thread | M70 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
