VICO

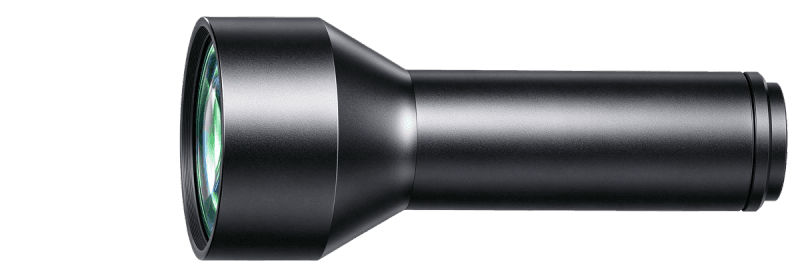

C-Mount High Resolution Telecentric Lenses
WWK035-90-230
WWK035-90-230
WWK035-90-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.35 |
|---|---|
| Working Distance(mm) | 90 |
| Max Sensor Size | 11(2/3") |
| F-Number | 5.5 |
| Telecentricity(°) | 0.14 |
| Distortion(%) | 0.15 |
| MTF30 (Image-side)(lp/mm) | 151.5 |
| Object Resolution(μm) | 11.27 |
| Depth of Field(mm) | 3.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 122.0 |
| NA | 0.0318 |
|---|---|
| Filter Thread | M50x0.5 |
| Coaxial Light Support | No |
| Iris | No |
