C-Mount High Resolution Telecentric Lenses
WWK035-330-230
WWK035-330-230

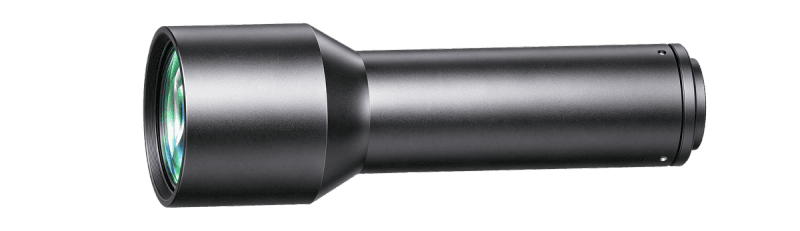

WWK035-330-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.341 |
|---|---|
| Working Distance(mm) | 330 |
| Max Sensor Size | 11(2/3") |
| F-Number | 9 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.024 |
| MTF30 (Image-side)(lp/mm) | 95.2 |
| Object Resolution(μm) | 17.3 |
| Depth of Field(mm) | 5.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 147.1 |
| NA | 0.02 |
|---|---|
| Filter Thread | M48 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
