VICO
C-Mount High Resolution Telecentric Lenses

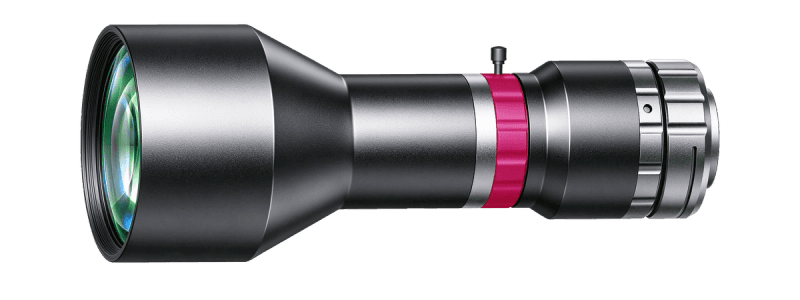

WWK035-160-110-AL-G
WWK035-160-110-AL-G
WWK035-160-110-AL-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.35 |
|---|---|
| Working Distance(mm) | 160 |
| Max Sensor Size | 16(1") |
| F-Number | 7-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.02 |
| MTF30 (Image-side)(lp/mm) | 132-30 |
| Object Resolution(μm) | 13.4-61.2 |
| Depth of Field(mm) | 4.6-20.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 153.0 |
| NA | 0.02504-0.00548 |
|---|---|
| Filter Thread | M58x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
