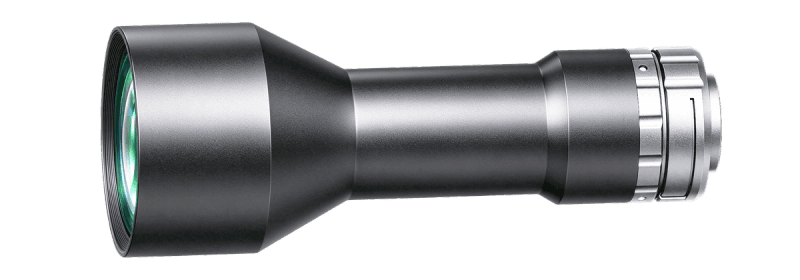

C-Mount High Resolution Telecentric Lenses
WWK035-160-110-AL
WWK035-160-110-AL
WWK035-160-110-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.35 |
|---|---|
| Working Distance(mm) | 160 |
| Max Sensor Size | 16(1") |
| F-Number | 7 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.02 |
| MTF30 (Image-side)(lp/mm) | 132 |
| Depth of Field(mm) | ±2.3@F7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 153.0 |
| NA | 0.02504 |
|---|---|
| Filter Thread | M58x0.5 |
| Coaxial Light Support | No |
| Iris | No |
