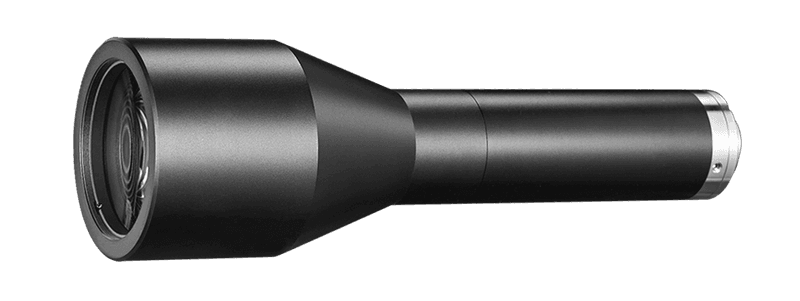

C-Mount High Resolution Telecentric Lenses
WWK0348-135-230
WWK0348-135-230
WWK0348-135-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.348 |
|---|---|
| Working Distance(mm) | 135±2 |
| Max Sensor Size | 11(2/3") |
| F-Number | 8 |
| Telecentricity(°) | <0.4 |
| Distortion(%) | <0.3 |
| MTF30 (Image-side)(lp/mm) | >125 |
| Depth of Field(mm) | ±2.6@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 136.7 |
| Filter Thread | M40x0.5 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
