C-Mount High Resolution Telecentric Lenses

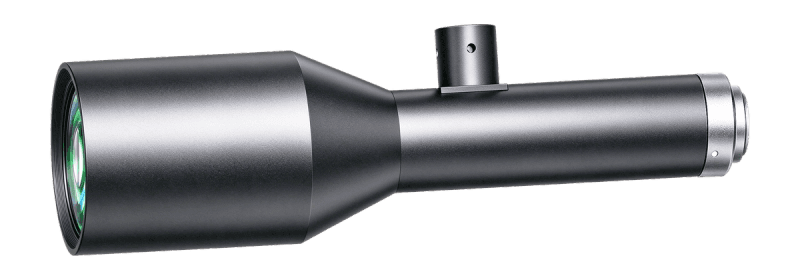

WWK0345-220C-110
WWK0345-220C-110
WWK0345-220C-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.345 |
|---|---|
| Working Distance(mm) | 220±3 |
| Max Sensor Size | 16.0(1") |
| F-Number | 8.0 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | 115 |
| Object Resolution(μm) | 15.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 214.9 |
| NA | 0.022 |
|---|---|
| Filter Thread | M61 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
