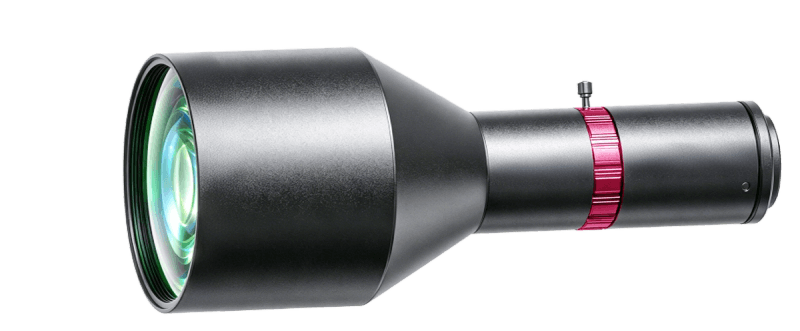

C-Mount High Resolution Telecentric Lenses
WWK0345-220-111V5-G
WWK0345-220-111V5-G
WWK0345-220-111V5-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.345 |
|---|---|
| Working Distance(mm) | 220 |
| Max Sensor Size | 18.2(1.1") |
| F-Number | 8-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.027 |
| MTF30 (Image-side)(lp/mm) | 122.1-33.1 |
| Object Resolution(μm) | 15.6-62.2 |
| Depth of Field(mm) | 5.4-21.5 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 172.5 |
| NA | 0.022-0.0054 |
|---|---|
| Filter Thread | M68x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
