VICO
C-Mount High Resolution Telecentric Lenses
WWK0345-220-111V4
WWK0345-220-111V4

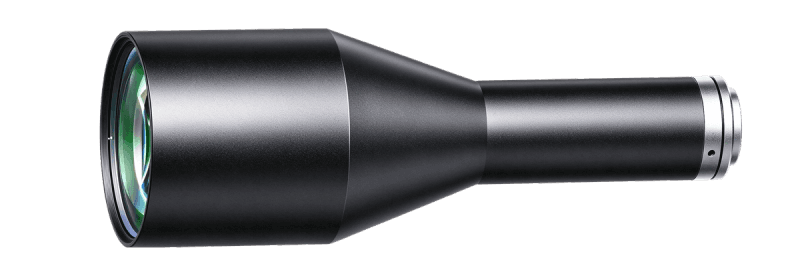

WWK0345-220-111V4 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.345 |
|---|---|
| Working Distance(mm) | 220 |
| Max Sensor Size | 18.2(1.1") |
| F-Number | 8 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.025 |
| MTF30 (Image-side)(lp/mm) | 116 |
| Object Resolution(μm) | 15.6 |
| Depth of Field(mm) | 5.4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 212.5 |
| Object Field of View(Φmm) | 52.8 |
|---|---|
| NA | 0.02154 |
| Length of I/O(mm) | 450 |
| Filter Thread | M70x0.5 |
| Coaxial Light Support | No |
| Iris | No |
