VICO

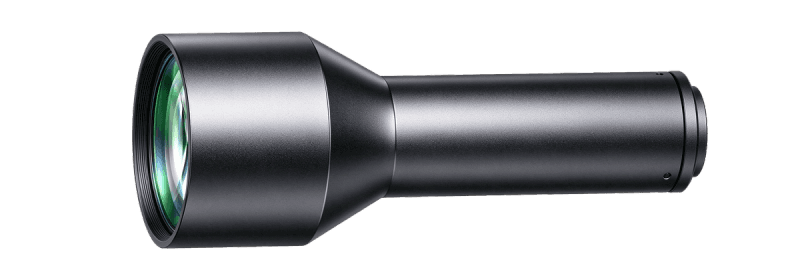

C-Mount High Resolution Telecentric Lenses
WWK0341-350-230
WWK0341-350-230
WWK0341-350-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.341 |
|---|---|
| Working Distance(mm) | 350 |
| Max Sensor Size | 11(2/3") |
| F-Number | 9 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 95.4 |
| Object Resolution(μm) | 17.7 |
| Depth of Field(mm) | 6.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 149.6 |
| NA | 0.019 |
|---|---|
| Filter Thread | M57 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
