C-Mount High Resolution Telecentric Lenses

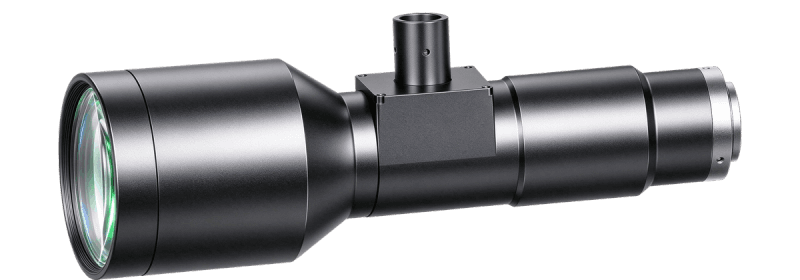

WWK03-350C-230
WWK03-350C-230
WWK03-350C-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 350 |
| Max Sensor Size | 11(2/3") |
| F-Number | 7 |
| Telecentricity(°) | 0.025 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 125 |
| Depth of Field(mm) | 6.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 219.4 |
| NA | 0.02146 |
|---|---|
| Coaxial Light Support | Yes |
| Iris | No |
