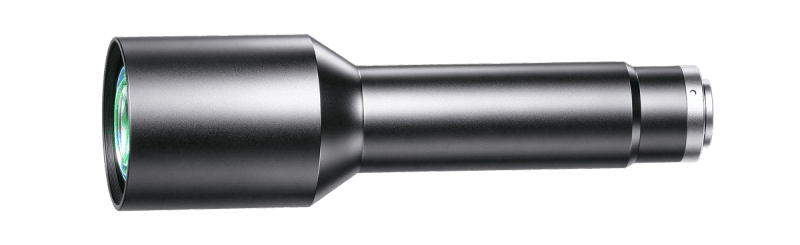

C-Mount High Resolution Telecentric Lenses
WWK03-350-230V2
WWK03-350-230V2
WWK03-350-230V2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 350 |
| Max Sensor Size | 11(2/3") |
| F-Number | 7 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 124 |
| Object Resolution(μm) | 15.7 |
| Depth of Field(mm) | 6.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 219.4 |
| NA | 0.0214 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
