C-Mount High Resolution Telecentric Lenses

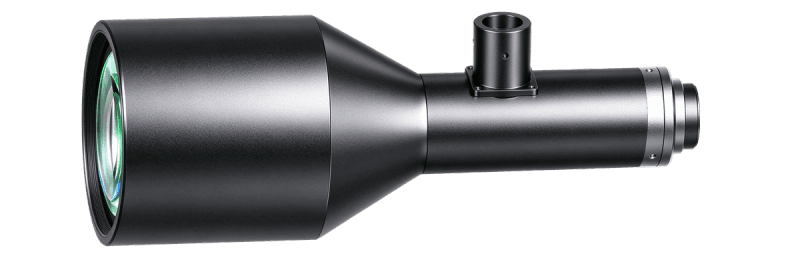

WWK03-250C-110
WWK03-250C-110
WWK03-250C-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 250±2 |
| Max Sensor Size | 16（1''） |
| F-Number | 8.0 |
| Telecentricity(°) | 0.03 |
| Distortion(%) | 0.3 |
| MTF30 (Image-side)(lp/mm) | 115 |
| Depth of Field(mm) | 7.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 200.6 |
| NA | 0.01902 |
|---|---|
| Coaxial Light Support | Yes |
| Iris | No |
