C-Mount High Resolution Telecentric Lenses
WWK03-220C-230

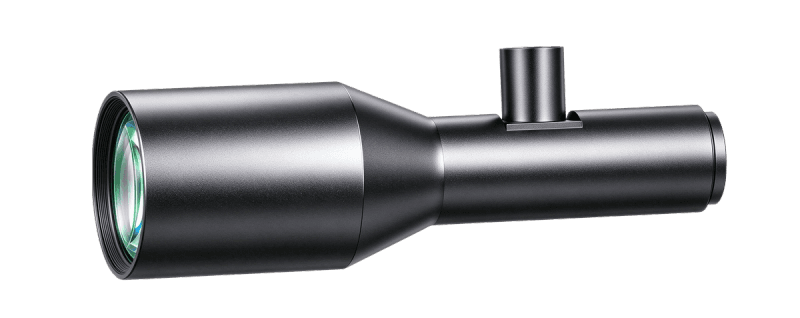

WWK03-220C-230
WWK03-220C-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 220±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 13.6 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >63 |
| Depth of Field(mm) | ±6@F13.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 167.7 |
| Filter Thread | M48x0.5 |
|---|---|
| Coaxial Light Support | Yes |
| Iris | No |
