VICO
C-Mount High Resolution Telecentric Lenses
WWK03-220-110
WWK03-220-110

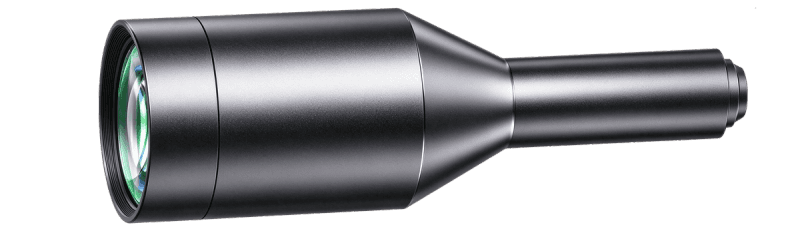

WWK03-220-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 220 |
| Max Sensor Size | 16(1") |
| F-Number | 8.0 |
| Telecentricity(°) | <0.2 |
| Distortion(%) | <0.2 |
| MTF30 (Image-side)(lp/mm) | 102 |
| Depth of Field(mm) | ±3.6@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 230.6 |
| NA | 0.01902 |
|---|---|
| Filter Thread | M70 P0.75 |
| Coaxial Light Support | No |
| Iris | No |
