C-Mount High Resolution Telecentric Lenses

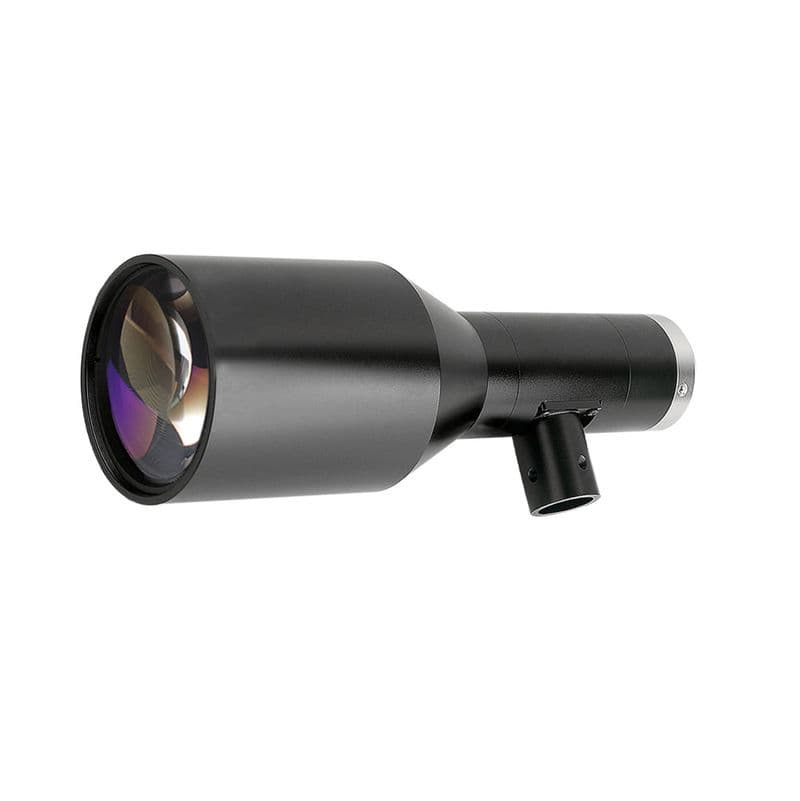

WWK03-180C-230
WWK03-180C-230
WWK03-180C-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 180±2 |
| Max Sensor Size | 11.0(2/3)" |
| F-Number | 10 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | 83 |
| Depth of Field(mm) | ±4.4@F10 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 166.3 |
| NA | 0.015 |
|---|---|
| Filter Thread | M48 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
