C-Mount High Resolution Telecentric Lenses
WWK03-180-118
WWK03-180-118

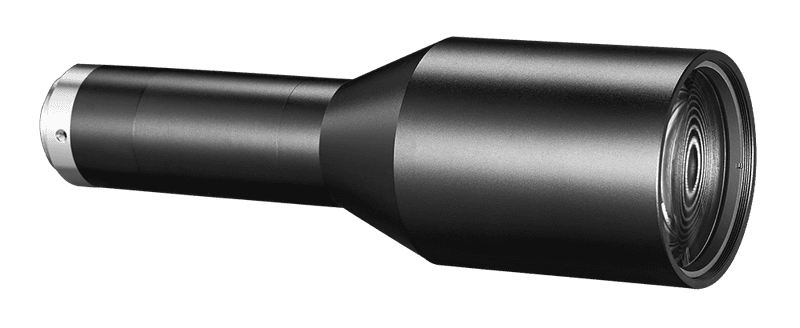

WWK03-180-118 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 180±2 |
| Max Sensor Size | 1/1.8" |
| F-Number | 8.0 |
| Telecentricity(°) | 0.03 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 100 |
| Depth of Field(mm) | ±3.6@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 166.2 |
| NA | 0.0188 |
|---|---|
| Filter Thread | M48 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
