VICO

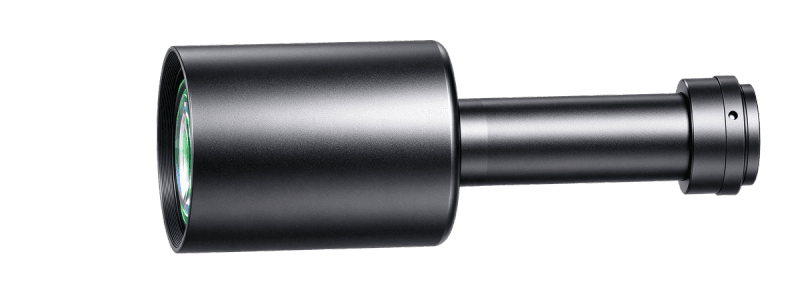

C-Mount High Resolution Telecentric Lenses
WWK03-153-230-V2
WWK03-153-230-V2
WWK03-153-230-V2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 153 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 7.9 |
| Telecentricity(°) | 0.04 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 81 |
| Object Resolution(μm) | 17.6 |
| Depth of Field(mm) | 7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 142.8 |
| NA | 0.019 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
