VICO
C-Mount High Resolution Telecentric Lenses

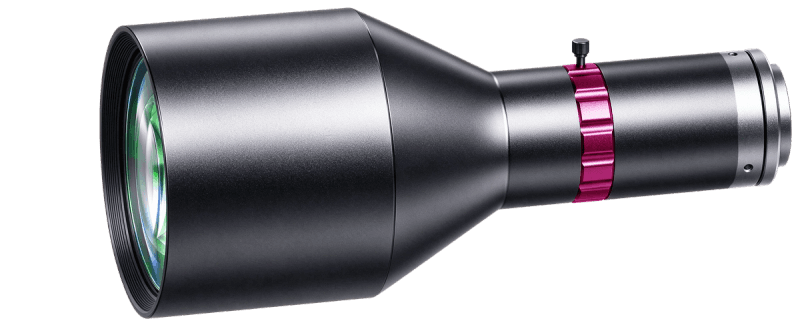

WWK03-150-110-G
WWK03-150-110-G
WWK03-150-110-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 16(1") |
| F-Number | 6-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 149.4-31.2 |
| Object Resolution(μm) | 14.3941-76.3846 |
| Depth of Field(mm) | 5.3-28.4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 157.5 |
| Object Field of View(Φmm) | 53.3 |
|---|---|
| NA | 0.0249-0.0047 |
| Coaxial Light Support | No |
| Iris | Yes |
