VICO
C-Mount High Resolution Telecentric Lenses

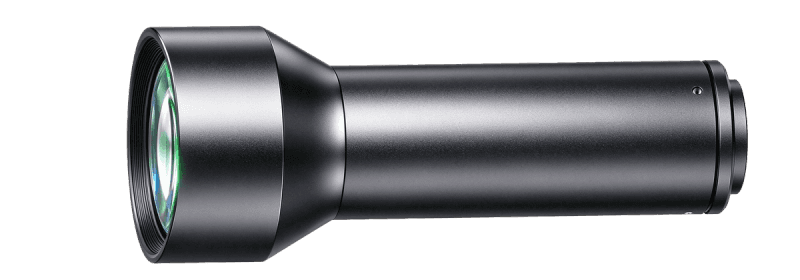

WWK03-130-230
WWK03-130-230
WWK03-130-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 130 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 7.9 |
| Telecentricity(°) | 0.01 |
| Distortion(%) | 0.07 |
| MTF30 (Image-side)(lp/mm) | 108 |
| Object Resolution(μm) | 17.7 |
| Depth of Field(mm) | 7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 128.2 |
| NA | 0.018987 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
