C-Mount High Resolution Telecentric Lenses

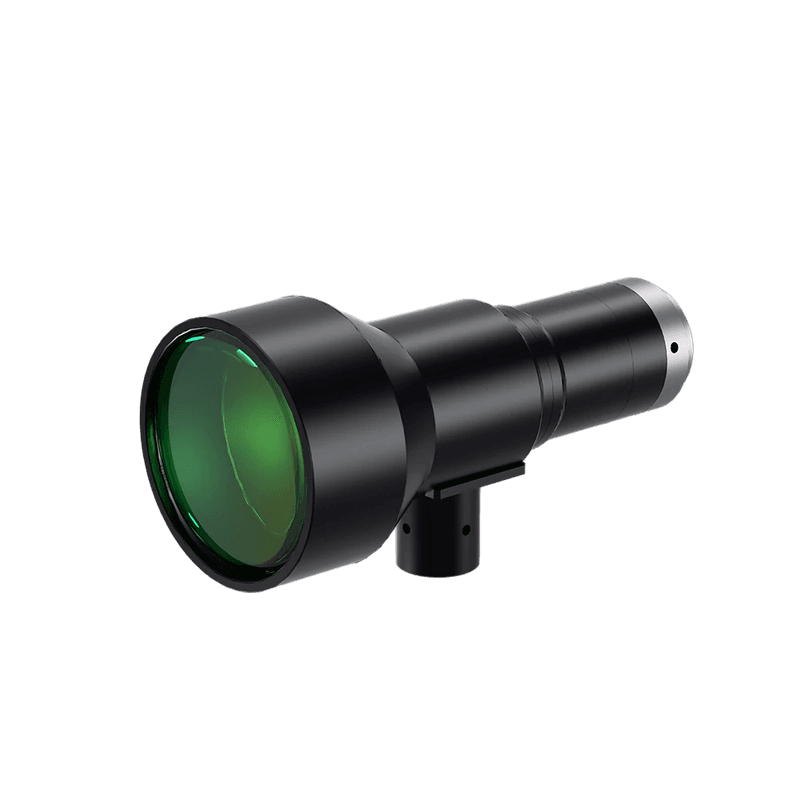

WWK03-110C-230
WWK03-110C-230
WWK03-110C-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 11.0(2/3 |
| F-Number | 5.6 |
| Telecentricity(°) | <0.04 |
| Distortion(%) | <0.02 |
| MTF30 (Image-side)(lp/mm) | 170 |
| Depth of Field(mm) | ±2.5@F5.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 118.0 |
| NA | 0.02684 |
|---|---|
| Filter Thread | M52 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
