VICO

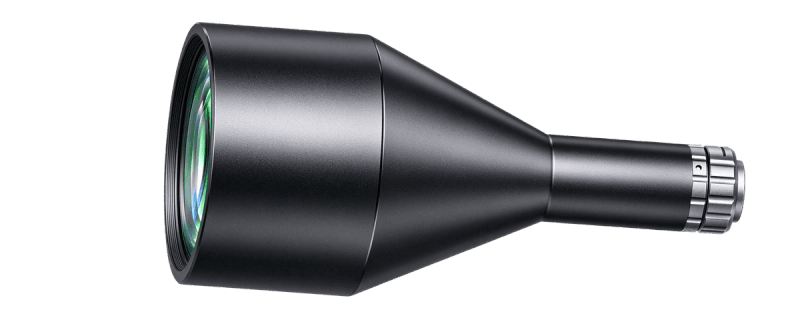

C-Mount High Resolution Telecentric Lenses
WWK023-207-111
WWK023-207-111
WWK023-207-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.23 |
|---|---|
| Working Distance(mm) | 207 |
| Max Sensor Size | 17.6(1.1") |
| F-Number | 11.1 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.14 |
| MTF30 (Image-side)(lp/mm) | 83 |
| Depth of Field(mm) | 16.8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 241.2 |
| Object Field of View(Φmm) | 76.6 |
|---|---|
| NA | 0.01032 |
| Filter Thread | M99 P0.75 |
| Coaxial Light Support | No |
| Iris | No |
