C-Mount High Resolution Telecentric Lenses

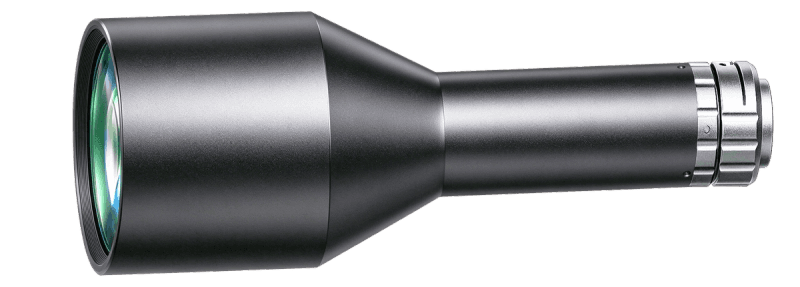

WWK022-230-230-AL
WWK022-230-230-AL
WWK022-230-230-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.22 |
|---|---|
| Working Distance(mm) | 230±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 6.9 |
| Telecentricity(°) | 0.07 |
| Distortion(%) | 0.09 |
| MTF30 (Image-side)(lp/mm) | ≥120 |
| Object Resolution(μm) | 21.1 |
| Depth of Field(mm) | ±5.7@F6.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 185.8 |
| NA | 0.01593 |
|---|---|
| Filter Thread | M65x0.5 |
| Coaxial Light Support | No |
| Iris | No |
